:点对点无线网桥:
点对点无线网桥

Cambium Networks PTP450i远距离无线网桥

PTP450i 远距离无线网桥

    Cambium PTP450i 远距离无线网桥是一款 5GHz，带宽300M，传输距离200公里的远距离无线网桥,Cambium PTP450i 远距离无线网桥广泛应用于远距离无线视频传输/数据/语音传输、无线视频监控。



  •     Cambium Networks 450平台包括PMP450i以及PTP450i无线网桥产品。450i产品平台是具扩展性的工业级无线宽带解决方案。

  • Cambium PTP450i 远距离无线网桥设备关键特性：

  •   支持4900MHz-5925MHz的超宽频无线模块，并具备动态干扰过滤功能，改善发射功率和提高接收灵敏度

  •   坚固耐用的金属外壳：专为严苛环境设计，满足IP66和IP67标准。

  •   可选ATEX/HAZLOC认证型号，可用于在危险环境部署。

  •   动态干扰过滤：提供噪音隔离技术，提高性能表现

  •   升级的FPGA和SoC架构使处理能力相比PTP450提高了三倍

  •   多功能AUX端口：允许更大的部署灵活性，可以直接连接一个摄像机或者其它Poe

  •   40MHz频宽下，带宽达到300Mbps



ptp450i,远距离无线网桥，无线网桥

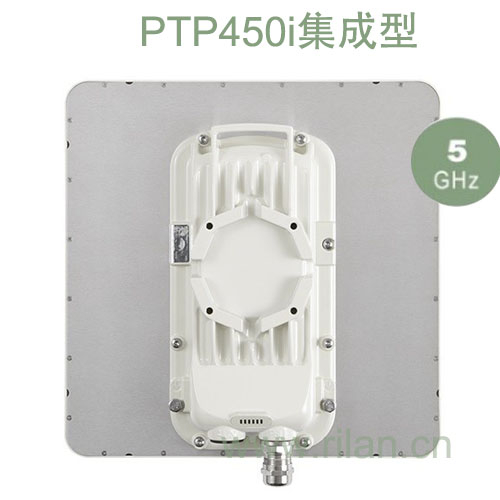

PTP450i 内置天线型 C050045B002A


PTP450i 内置天线型，频率：4900 - 5925 MHz；带宽：300M，+23 dBi H+V, integrated

ptp450i,远距离无线网桥，无线网桥

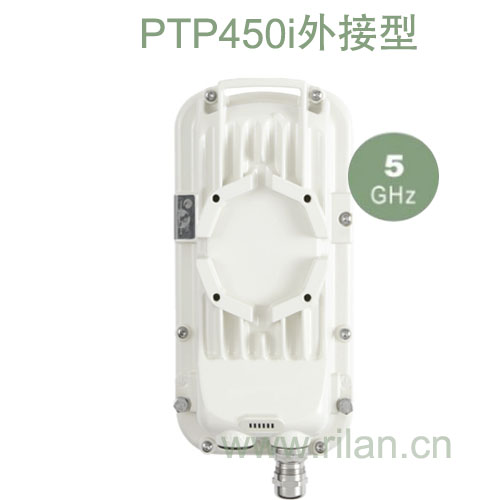

PTP450i 外接天线型 C050045B001A



PTP450i 外接天线型，频率：4900 - 5925 MHz；带宽：300M；传输距离：200公里。



  •

    PTP450i远距离无线网桥技术规格书：



    Product
          RoW US EU DES only
    Model Numbers 5 GHz Connectorized C050045B001A C050045B003A C050045B005A C050045B007A
      5 GHz Integrated C050045B002A C050045B004A C050045B006A C050045B008A

    Spectrum
    Channel Spacing Configurable on 2.5 MHz increments
    Frequency Range 4900 - 5925 MHz
    Channel Width 5 MHz, 10 MHz or 20 MHz

    Interface
    MAC (Media Access Control) Layer Cambium Networks proprietary
    Physical Layer 2x2 MIMO OFDM
    Ethernet Interface 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
    Protocols Used IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
    Network Management HTTP, HTTPS, Telnet, FTP, SNMP v3
    VLAN 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID

    Performance
    ARQ Yes
    Modulation Levels (Adaptive) MCS Signal to Noise Required (SNR, in dB)
    2X QPSK 10
    4X 16QAM 17
    6X 64QAM 24
    8X 256QAM 32
    Maximum Deployment Range Up to 58 to 400 miles minimum, depending on configuration
    Latency 3 - 5 ms, typical
    GPS Synchronization Yes, via Autosync (CMM3, CMM4)
    Quality of Service Diffserve QoS

    Link Budget
    Antenna Beam Width 10° azimuth for 23 dBi integrated antenna
    Antenna Gain +23 dBi H+V, integrated or external
    Transmit Power Range 40 dB dynamic range (to EIRP limit by region) (1 dB step)
    Maximum Transmit Power +27 dBm combined output

    Physical
    Antenna Connection 50 ohm, N-Type (Connectorized version only)
    Surge Suppression EN61000-4-5: 1.2us/50us, 500 V voltage waveform
    Recommended external surge suppressor: Cambium Networks Model # C000000L033A
    Mean Time Between Failure > 40 Years
    Environmental IP66, IP67
    Temperature / Humidity -40°C to +60°C (-40°F to +140°F), 0-95% non-condensing
    Weight Connectorized Approx. 2.0 kg (4.5 lbs.)
      Integrated Approx. 2.5 kg (5.5 lbs.)
    Wind Survival 190 km/hour (118 mi/hour)
    Dimensions (HxWxD) Connectorized 26.0 x 13.4 x 6.4 cm (10.25” x 5.25” x 3.25”)
      Integrated 31.0 x 31.0 x 6.4 cm (12” x 12” x 2.5”)
    Power Consumption 15 W typical, 25 W max, 55 W max with Aux port PoE out enable
    Input Voltage 48-59 V DC, 802.3at compliant
    Mounting Wall or Pole mount with Cambium Networks Model # N000045L002A

    Security
    Encryption 56-bit DES, FIPS-197 128-bit AES

    Certifications
    Industry Canada TBD (4.9, 5.4, 5.8 GHz)
    FCC ID TBD (4.9, 5.4, 5.8 GHz)
    CE EN 301 893 v1.7.1 (5.4 GHz)
      EN 302 625 v1.1.1 (Broadband Disaster Relief, 4.9 GHz, 5.1 GHz)
      EN 302 502 v1.2.1 (5.8 GHz)
